In this article, we will guide you through installing stock firmware (.fw) on Actions chipset-powered devices using the Actions Tablet Product Tool.
What is the Actions Tablet Product Tool?
Actions Tablet Product Tool is an official flashing utility by Action Semiconductor Co., Ltd that helps users flash or install stock firmware (.fw) on Actions chipset-powered devices.
What is Stock Firmware?
Stock firmware refers to the original operating system (OS) pre-installed on a mobile device when it leaves the factory. It’s a tailored version of the OS, customized by the manufacturer to incorporate its unique user interface (UI), proprietary features, and pre-installed applications.
How to Install Stock Firmware Using Actions Tablet Product Tool
Before you begin, ensure you have installed the necessary drivers and tools.
Prerequisites
- Charge your device to at least 40-50%.
- You will need a working Windows PC/Laptop and a USB cable.
- Take a complete backup of your device.
- Download and install Actions Driver.
- Download and install the Tablet Product Tool.
- Stock firmware for the device.
Disclaimer: androidmtk.com shall not be held liable for any damage incurred to your device during or after following this guide. Proceed with caution and at your own risk.
Steps to Install Stock Firmware (.fw) Using the Actions Tablet Product Tool

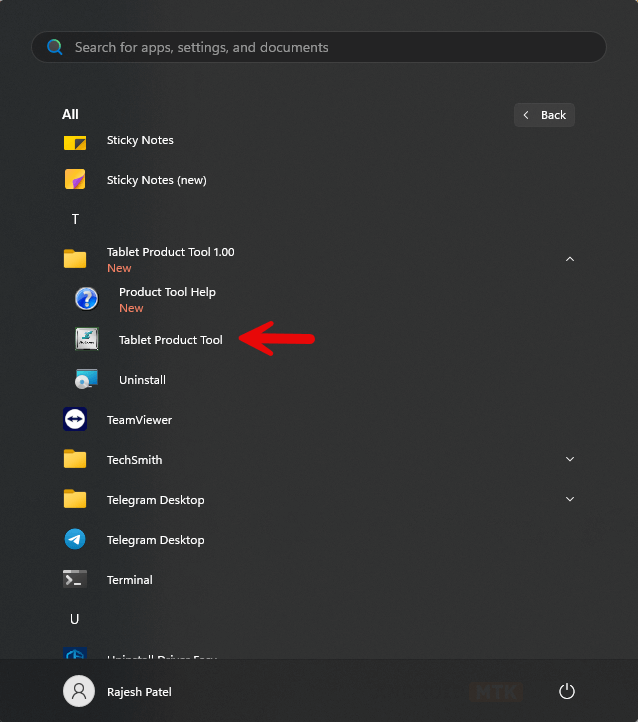

- Launch the Tablet Product Tool from the Start menu.

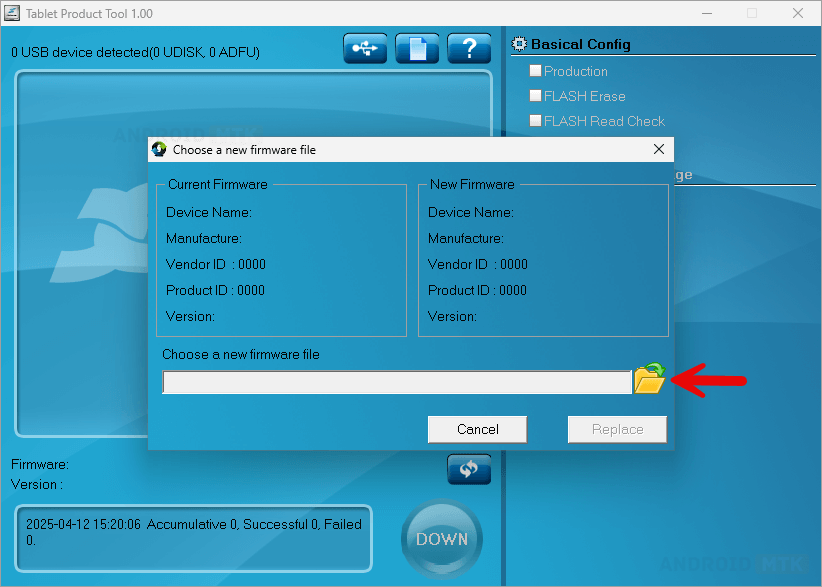

- Once the Tablet Product Tool is launched, click the Folder button.
- Locate the firmware (.fw) you want to install.

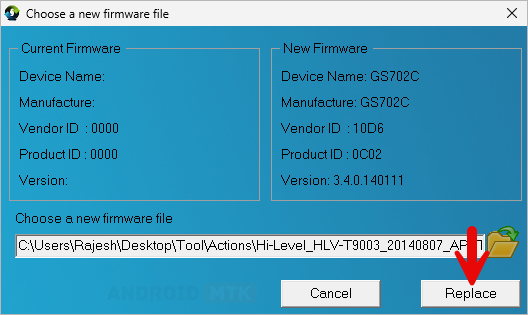

- Click the Replace button.
- Power off your device and connect it to your computer using the USB cable.

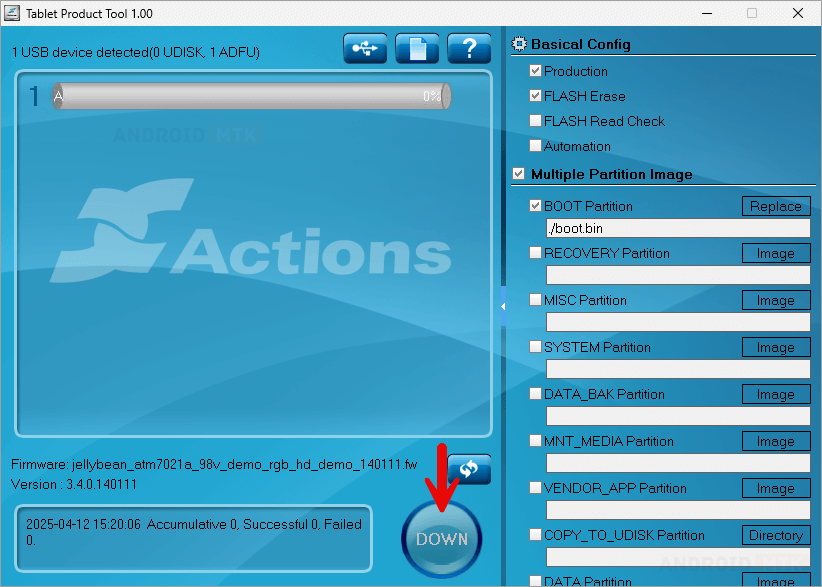

- Once the Down button turns blue, click the Down button to begin the flashing.

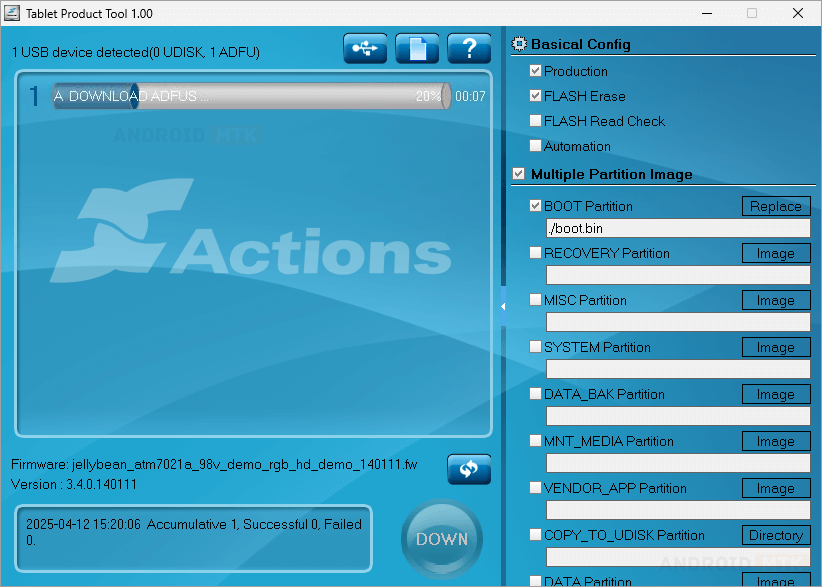

- The flashing process will take a few minutes to complete.

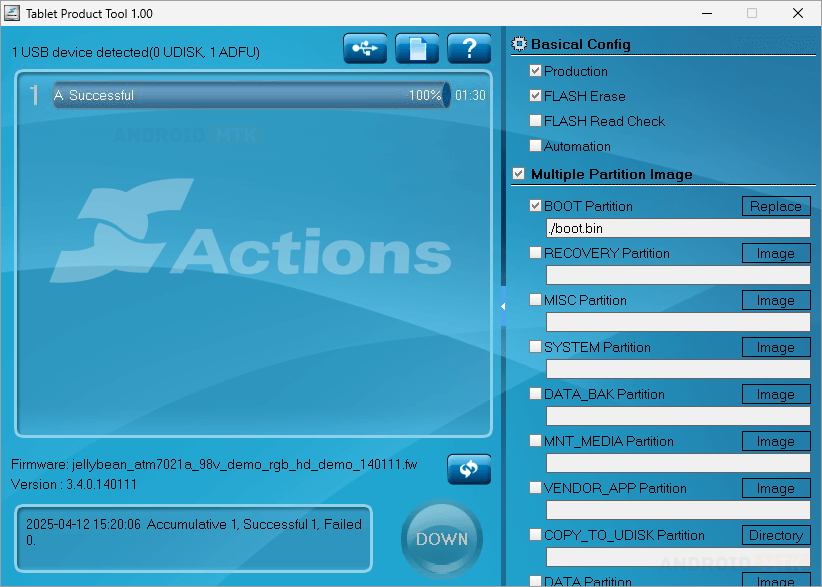

- Once the flashing process is complete, you will receive a successful message.
Congratulations! You have successfully flashed the stock firmware. Close the Tablet Product Tool, disconnect your device from the computer, and restart it.
Notes
- Initial Boot Process: Following the flashing procedure, your device will undergo an initial boot process, which may take anywhere from 1 to 10 minutes. Once complete, you will be prompted to choose the device language and other details, similar to setting up a new device.
- Caution: Back up your data before using the Tablet Product Tool. Your data will be permanently removed during the flashing or installation process.
- Credits: Action Semiconductor Co., Ltd. developed and distributed the Tablet Product Tool. We thank the company for making this free application available.
