These are instructions on how to root Motorola Moto X Play XT1562 using the TWRP recovery on Windows Computer.

Requirements: Your smartphone should have at least 20-30 percent of battery to perform the rooting process.

Root Motorola Moto X Play XT1562

  1. Follow the step-by-step instructions to unlock bootloader on your Motorola Device.

    2. Unlock

  2. Once you have successfully unlocked the bootloader on Motorola Moto X Play XT1562, then you need to install custom recovery (i.e TWRP or CWM recovery). For that you have to connect your device to the computer first then follow the below steps.

    3. Mobile USB Computer

  3. Download SuperSU (latest) and move it to the root of the Phone SD memory.
  4. Download and install the Minimal ADB and fastboot Tools on your computer.
  5. Download TWRP recovery (v2.8.7.0 tested working) on your computer and rename it to recovery.img.
  6. Now, move the recovery.img file to the Minimal ADB and Fastboot folder (i.e C:Program FilesMinimal ADB and Fastboot).

    7. twrp recovery Motorola Moto X Play XT1562

  7. Now, Open MAF32.exe or py_cmd.exe from the Minimal ADB and Fastboot folder.

    8. open maf32 command minimal fastboot

  8. Give the Following Command: adb devices

    9. Motorola ADB Devices

    The above command will help you to know the list of ADB devices attached to the computer.

  9. Now, Give another command: adb reboot bootloader

    10. motorola reboot bootloader

    The above command helps you to boot into the ADB mode.

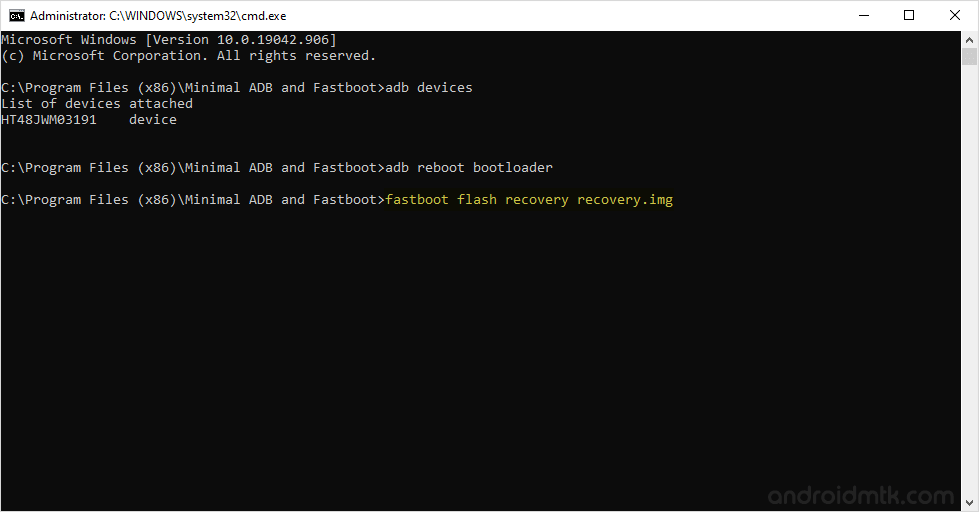

  10. Now, give another command: fastboot flash recovery recovery.img

    11. flash recovery motorola moto X XT1575

  11. Now, TWRP recovery will be installed on your phone and you will be able to see some process on your Device screen.
  12. Now, you need to boot into the ADB mode. To boot into adb mode, Press and hold the Volume Down Key and Power Key (for 4-5 seconds) and release the power key but keep holding the Volume Down key until ADB mode is visible on the screen.
  13. Once you have booted into the ADB mode, Select Recovery (use volume down for scrolling and Volume Up to select).
  14. Once you have booted into the TWRP recovery mode, Tap on the Install and select the SuperSU package that you have moved to the Phone SD in Step#3.

    15. install supersu twrp

  15. Now, reboot your Device from the TWRP recovery.

    16. twrp install success

  16. Once your Device is restarted you will be able to see the SuperSU icon in the Menu. This confirms that you have successfully rooted your Motorola Moto X Play XT1562.

    17. SuperSU Installed on Stock-5.0

    Optional: You can also verify the root status of your device by using the Root Checker Application.

Notes

[*] No data loss process: Your data including contacts, pictures, videos, music wont be affected using the above method. In short, no data loss process.

[*] Motorola Stock Firmware: If you are looking for the original firmware for your device, then head over to Download Motorola Stock Firmware page.

[*] Motorola USB Driver: If you are looking for the original USB Driver for your device, then head over to Download Motorola USB Driver page.

[*] Credits: The TWRP recovery shared on this page is officially developed by Vache (xda developer), so full credits goes to him for the recovery file.

[*] Big thanks to Chainfire for their SuperSU file, without this tool the above tutorial was not possible.
