How to remove or bypass FRP Lock on Huawei Honor Play 8A JAT-L29

Updated on September 9, 2020

These are the instructions to remove or bypass FRP Lock on Huawei Honor Play 8A JAT-L29 Smartphone using the SP Flash Tool.

Requirements: Your device needs to have at least 30-40 percent of battery to perform the bypass process.

Remove or Bypass FRP Lock on Huawei Honor Play 8A JAT-L29

  1. Download and install MediaTek Drivers on the Computer. If in case Mediatek Drivers are already installed on the computer, then SKIP this step.
  2. usb logo

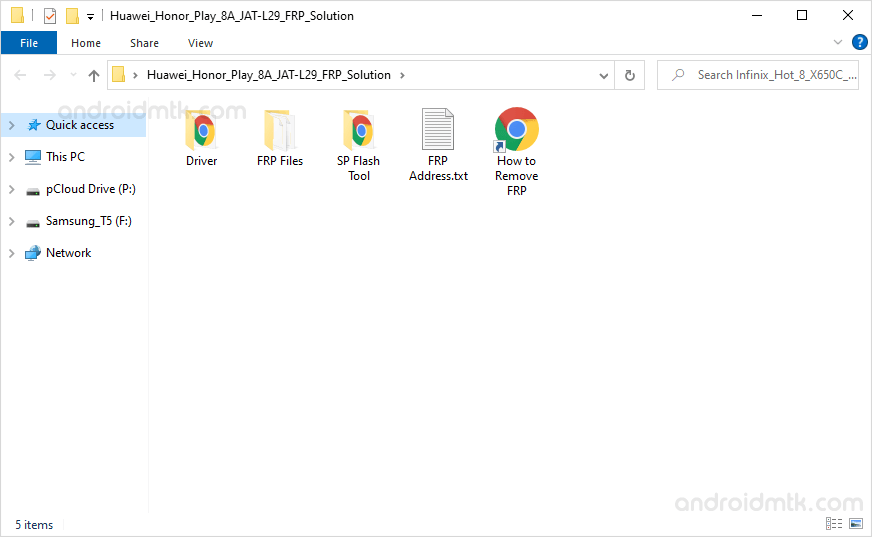

  3. Download and Extract the Huawei Honor Play 8A JAT-L29 FRP File on the computer. Once the FRP File is extracted, you will get the following files:
  4. Huawei Honor Play 8A JAT-L29 FRP Files
  5. Download and Extract the latest version of SP Flash Tool on the computer. Once the SP Flash Tool is extracted, you will get the following files:
  6. Smart Phone Flash Tool Extracted Files
  7. Open Flash_Tool.exe.
  8. Open SP Flash Tool

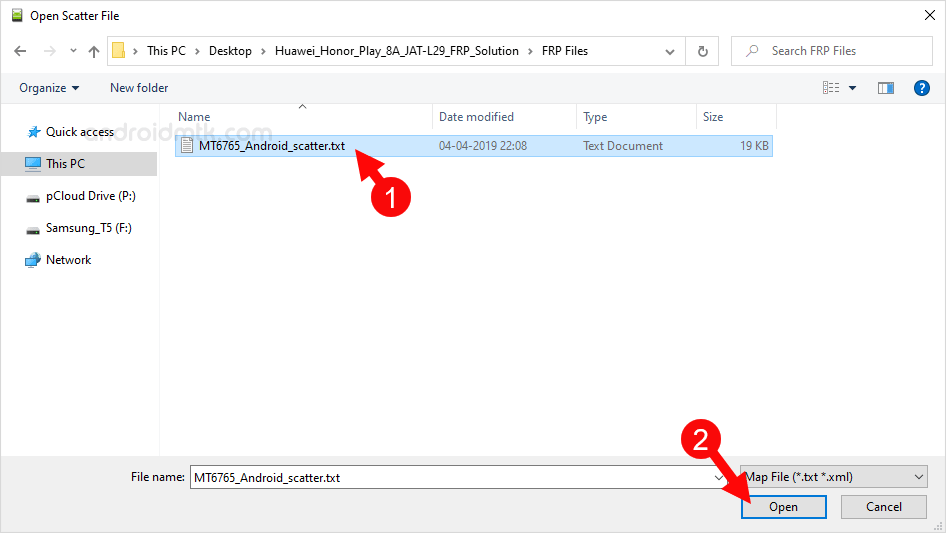

  9. Once SP Flash Tool is Launched, Click on the Scatter Loading Button and Load the Huawei Honor Play 8A JAT-L29 Scatter File (found in the extracted file in Step#2).
  10. SP Flash Tool Scatter Choose Huawei Honor Play 8A JAT-L29 Select Scatter
  11. Click on the Authentication File button and Locate the auth_sv5.auth file from the FRP File Folder that you have downloaded in Step#2.
  12. Huawei Honor Play 8A JAT-L29 Auth File Choose Huawei Honor Play 8A JAT-L29 Select Auth
  13. Click on the Format Menu.
  14. Huawei Honor Play 8A JAT-L29 Format Tab
  15. Under Format Menu, select Manual Format Flash.
  16. SP Flash Tool MT6765 Manual Format Flash
  17. Set the Following parameters: Region: EMMC_USER, Begin Address[HEX]: 0x108000, Format Length[HEX]: 0x100000.
  18. MT6765 0x108000 0x100000 Manual Format Parameter
  19. Click on the Start Button:
  20. MT6765 0x108000 0x100000 Manual Format Parameter Start
  21. Connect your Device to the Computer using the USB Cable (make sure the device is Power Off). After connecting the device to the computer, Press Volume Down or UP Keys on the Smartphone to get it detected by the SP Flash Tool.
  22. mobile usb computer

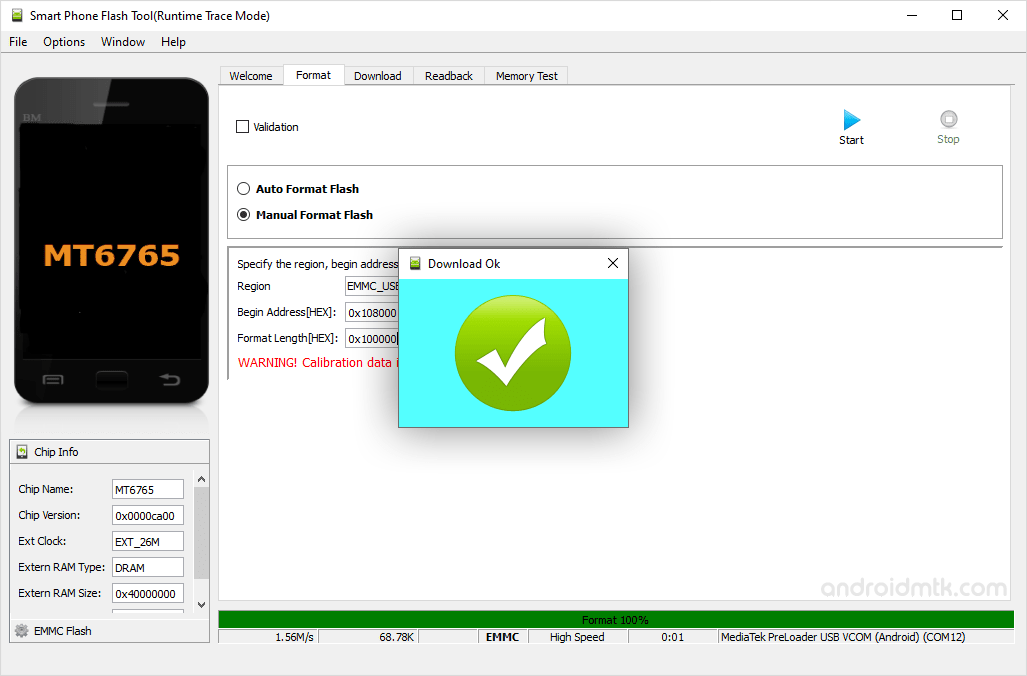

  23. Once SP Flash Tool detects the device, the bypass process will start automatically and take up to 1-2 minutes to complete. Once the bypass process completes, you will see the Green Tick at the End.
  24. MT6765 0x108000 0x100000 Success
  25. Close the SP Flash Tool and Disconnect the device from the computer.
  26. disconnect mobile computer

    Congratulations! Now, Restart the device, and you won’t be facing the FRP protection on the device.

    Readme Once:

    [*] Caution: Removing the FRP (factory reset protection) from the Android Device will wipe the data from the device. Therefore, we recommend you to take a backup of your data before following the tutorial above.

    [*] Alternative Tool: SP Multiport Download Tool is the alternative Flash Tool which can be used to flash or install the Scatter Firmware.

    [*] Driver Issue? If you are facing difficulty with the Mediatek USB Driver, then in that situation you can try Mediatek AutoInstaller Driver or MTK USB All Driver.

    [*] Credits: Yasmin Bloomfield submits the FRP file shared above. So, full credit goes to him for sharing the File for free.
