In this article, we will guide you through installing stock firmware (.m0) on old ARM chipset-powered devices using the Lesufluid Software Update Tool.
What is the Lesufluid Update Tool?
The Lesufluid Software Update Tool is an official flashing utility provided by Lenovo Mobile Co., Ltd. It helps you flash or install stock firmware (.m0) on old ARM chipset-based devices.
What is Stock Firmware?
Stock firmware refers to the original operating system (OS) pre-installed on an ARM chipset-based device when it leaves the factory. It’s a tailored version of the OS, customized by the manufacturer to incorporate its unique user interface (UI), proprietary features, and pre-installed applications.
How to Install .m0 Firmware Using Lesufluid Update Tool
Installing the necessary drivers and tools before installing or flashing stock firmware using the Lesufluid Software Update Tool is important.
Prerequisites
- Charge your device to at least 40-50%.
- A working Windows PC/Laptop and a USB Cable.
- Take a complete Backup of your Device.
- Download and extract Lesufluid Software Update Tool.
- Stock Firmware of the device.
Disclaimer: androidmtk.com shall not be held liable for any damage incurred to your device during or after following this guide. Proceed with caution and at your own risk.
Steps to install .m0 Firmware using Lesufluid Software Update Tool

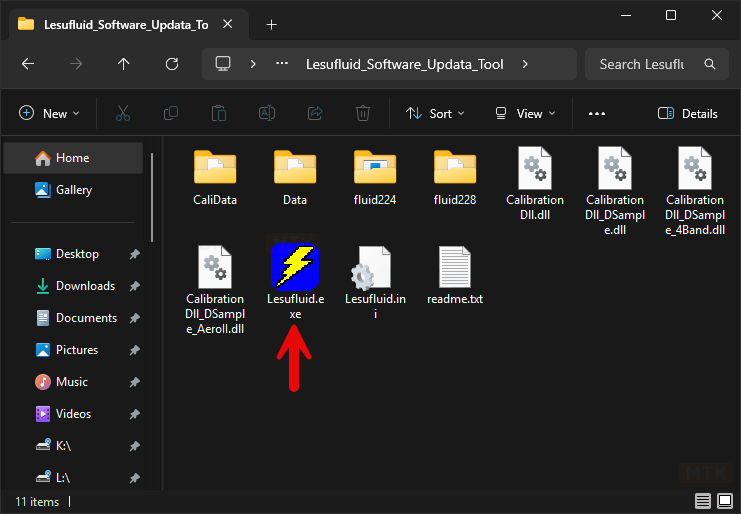

- Launch the Lesufluid Tool by double-clicking on the Lesufluid.exe file (found inside the Lesufluid Update Tool folder).

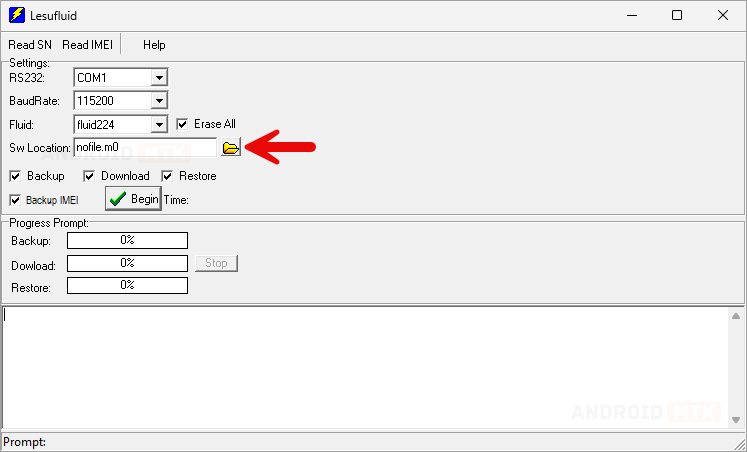

- Once the Lesufluid Tool is launched, Click the Browse button.

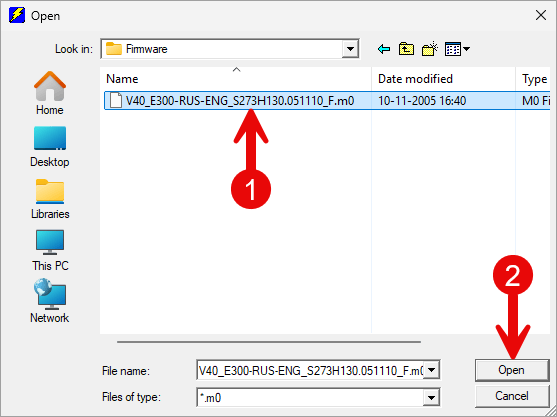

- Locate the Firmware (.m0) that you want to flash/install.
- Power off your device and connect it to your computer using the USB cable.

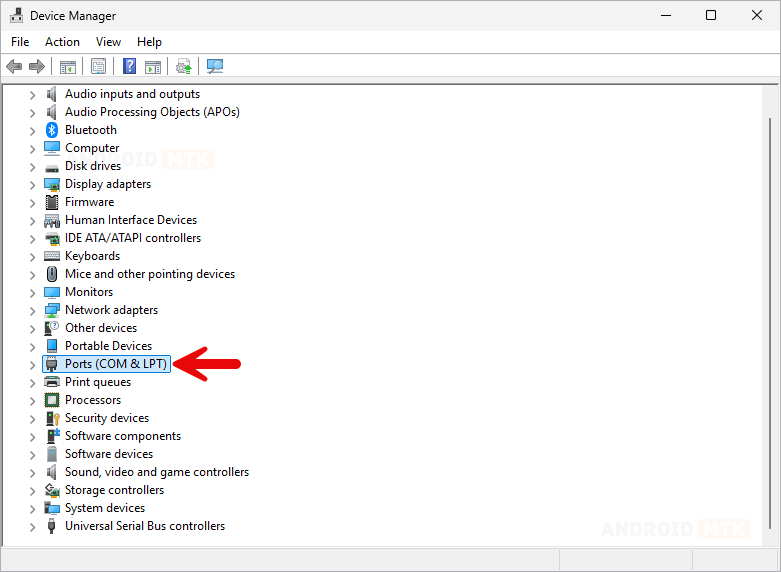

- Once the computer detects the device, you can check the device port ID from the device manager.

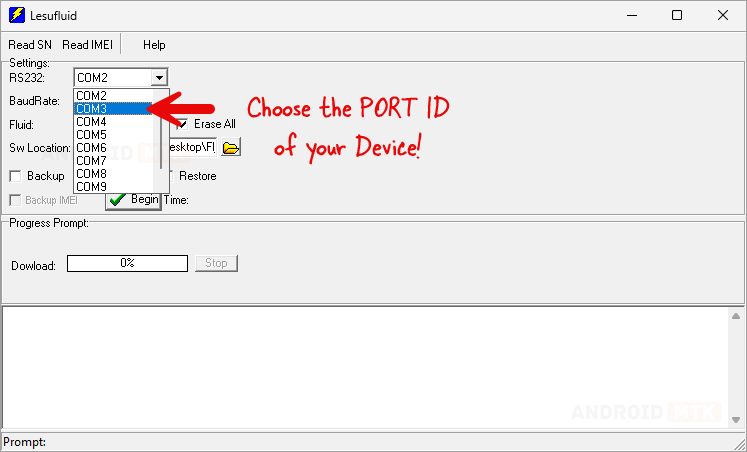

- Choose the Device Port ID from the Drop-down menu.

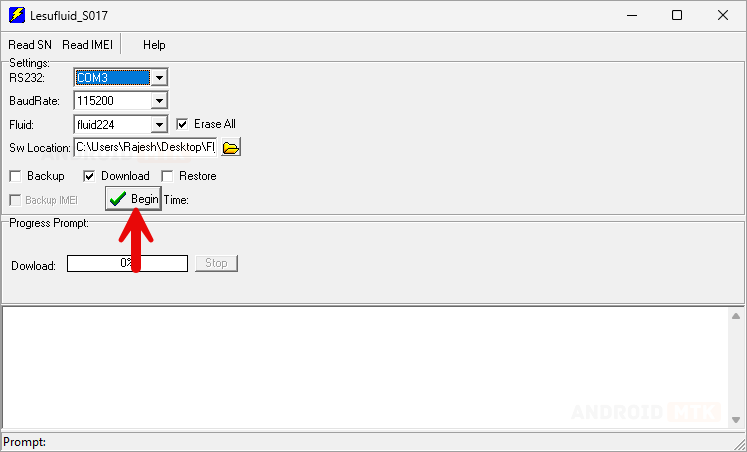

- Click on the Begin button to shart the flashing process.

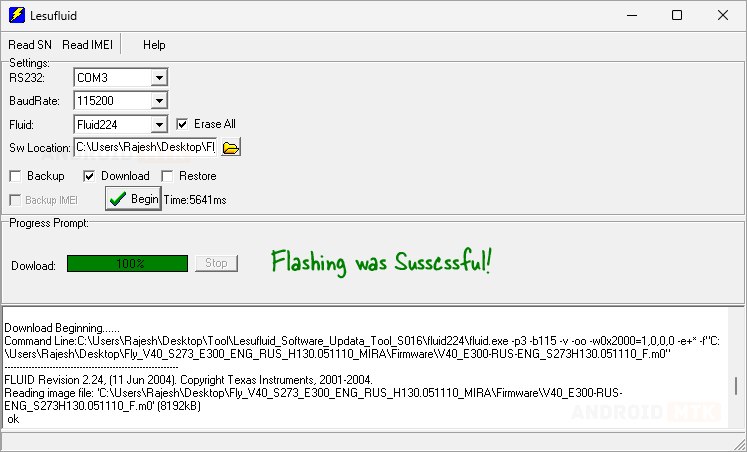

- Once the flashing process is completed, you will get a Green 100% progress bar at the end.
☝How to Open Device Manager:
1. Press the Windows key + R.
2. Type devmgmt.msc and press Enter.
Congratulations! You have successfully flashed the stock firmware. Close the Lesufluid Update Tool, disconnect your device from the computer, and restart it.
Notes
- Initial Boot Process: Following the flashing procedure, your device will undergo an initial boot process, which may take anywhere from 10 seconds to 1 minute. Once completed, you will be prompted to choose the device language and other details, similar to setting up a new device.
- Caution: Back up your data before using the Lesufluid Update Tool. Your data will be permanently removed during the flashing/installation process.
- Credits:: Lenovo Mobile Co., Ltd. developed and distributed the Lesufluid Update Tool. The company is thanked for providing the free application.
