How to remove or bypass Kenbo E111 FRP Lock

Updated on May 5, 2021

These are the instructions to remove or bypass Kenbo E111 FRP Lock using the SP Flash Tool.

Caution: Removing or bypassing the FRP protection using the SP Flash Tool may wipe/delete the device’s data. Therefore, we aren’t responsible for any data loss on the device.

Bypass Kenbo E111 FRP Lock using SP Flash Tool

  1. Download and install MediaTek Drivers on the Computer. If in case Mediatek Drivers are already installed on the computer, then SKIP this step.
  2. USB Logo
  3. Download and Extract the Kenbo E111 FRP package on the computer. After Extracting the Kenbo E111 FRP package, you will be able to see the following files:
  4. Kenbo E111 FRP Files
  5. Download and Extract the SP Flash Tool (v5.1824) on the Computer. After Extracting the SP Flash Tool, you will get following files:
  6. SP Flash Tool Extracted Files
  7. Open Flash_Tool.exe.
  8. Open SP Flash Tool
  9. Once SP Flash Tool is Launched, Click on the Download Agent Choose Button and Load the DA_SWSEC_1640_V2610AN_KNB_MM_01.bin file (found in the extracted file in Step#2).
  10. SP Flash Tool Download Agent Kenbo E111 FRP DA
  11. Click on the Scatter Loading Choose button and Load the Scatter file (found in the extracted file in Step#2).

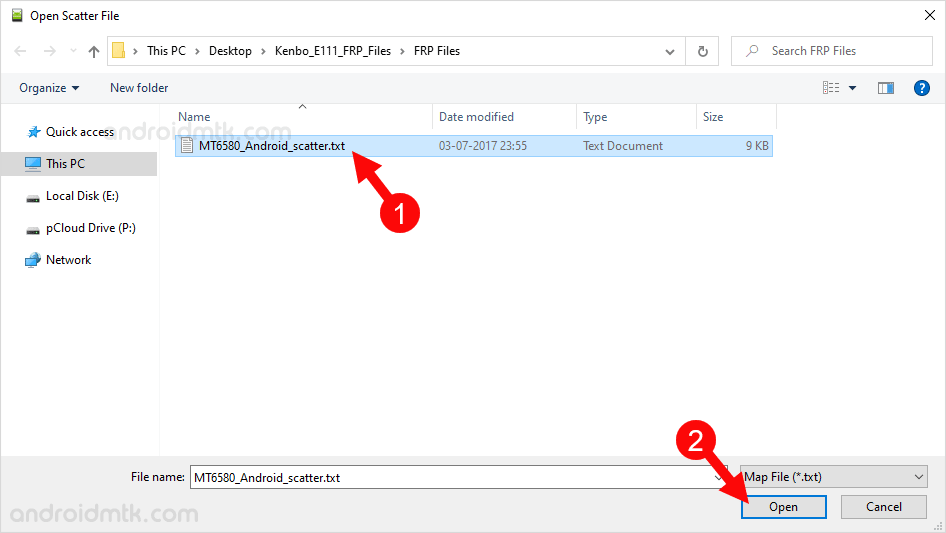

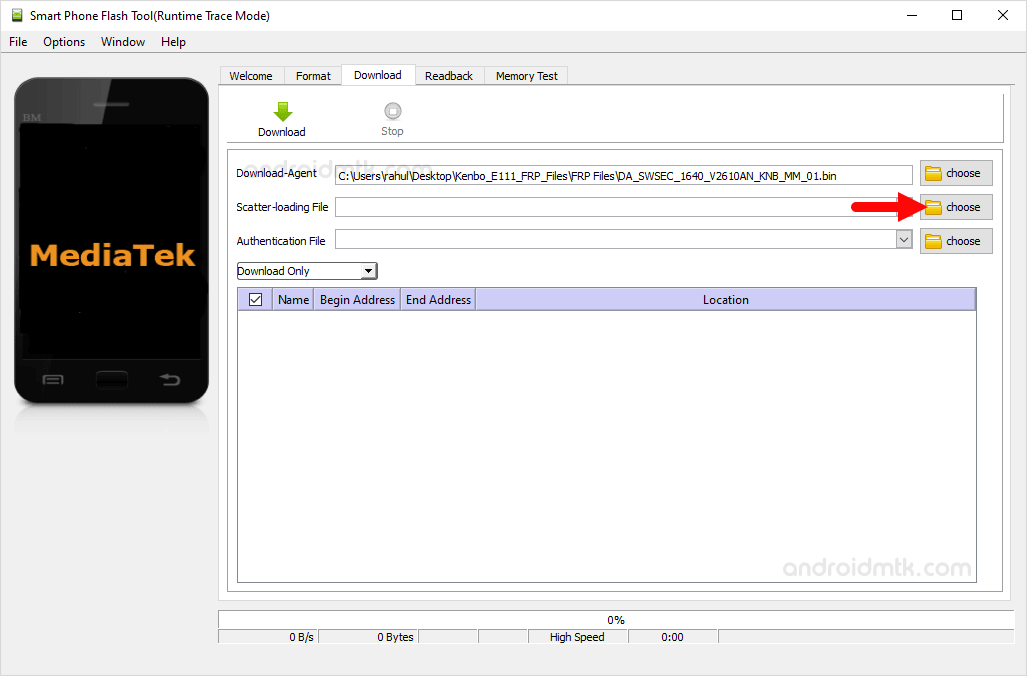

  12. Kenbo E111 Scatter Loading Kenbo E111 Scatter Select
  13. Click on the Format Menu.
  14. Kenbo E111 SP Flash Tool Format Menu
  15. Under Format Menu, select Manual Format Flash.
  16. sp flash tool mt6580 manual format flash
  17. Set the Following parameters: Region: EMMC_USER, Begin Address[HEX]: 0x4fa0000, Format Length[HEX]: 0x100000.
  18. mt6580 0x4fa0000 0x100000 manual format parameter
  19. Click on the Start Button:

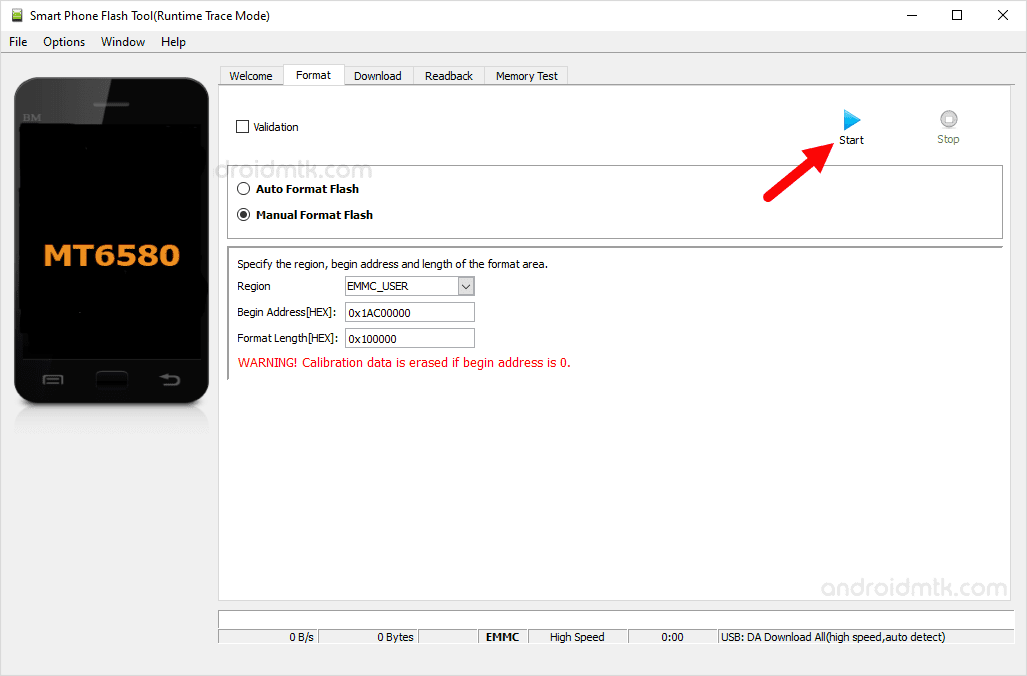

  20. mt6580 0x4fa0000 0x100000 manual format start
  21. Connect your device to the computer using the USB cable (make sure the device is Power Off). After connecting the device to the computer, Press Volume Down and Up Keys on your Smartphone to get it detected by the SP Flash Tool.
  22. Mobile USB Computer
  23. Once SP Flash Tool detects the device, the flashing process will start automatically and may take up to 5 minutes to complete. Once the Flashing process is completed, you will be able to see the Green Tick at the End.
  24. mt6580 0x4fa0000 0x100000 success
  25. Now, Close the SP Flash Tool and disconnect your device from the computer.
  26. Disconnect Mobile Computer

    Congratulations! Now, Restart the Device, and you won’t be facing the FRP protection on the device.

Readme Once:

[*] Caution: Removing the FRP (factory reset protection) from the Kenbo Device will wipe the data. Therefore, we recommend you take a backup of your data before following the tutorial above.

[*] Alternative Tool: SP Multiport Download Tool is the alternative Flash Tool which can be used to flash or install the Scatter Firmware.

[*] Kenbo Stock Firmware: If you are looking for the original firmware for your device, then head over to Download Kenbo Stock Firmware page.

[*] Kenbo USB Driver: If you are looking for the original USB Driver for your device, then head over to Download Kenbo USB Driver page.

[*] Credits: Somesh submits the FRP file shared above. So, full credit goes to him for sharing the File for free.
