How to use HW OneKeyDownload to Flash Firmware

Updated on July 3, 2018

These are the instructions on how to use HW OneKeyDownload Tool to flash stock firmware on any Android Device (Qualcomm Based).

Requirements: Your Android device should have atleast 20-30 percent of battery to perform the Flashing Process.

How to use HW OneKeyDownload Tool

Step 1: Download and extract HW OneKeyDownload Tool and Drivers. After Extracting you will be able to see the following files:

OneKeyDownload-Files

Step 2: Install the USB Drivers.

OneKeyDownload Driver

Step 3: Power Off your Android Device.

Power Off Android Device

Step 4: Download the Stock Rom that you want to Flash on your Android Device and extract it on your Computer.

Step 5: Now, Connect your Android Device to the Computer (make sure it is power off and Press the Volume UP and Down together, connect the phone to the computer at the same time).

Step 6: Now, Open HQ_ASP_Download.exe (you have extracted this in Step#1) on Your Computer.

OneKeyDownload Launch

Step 7: Once HW OneKeyDownload Tool is launched, Click on Choose Path Button and locate the firmware folder.

HW OneKeyDownload Choose Path

Step 8: Once You have successfully added the firmware folder in the HW OneKeyDownload Tool, Click on the Upgrade Button.

OneKeyDownload Start Flash

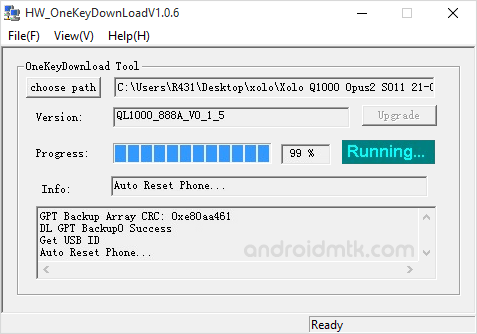

Step 9: Now, HW OneKeyDownload Tool will flash the firmware on your Android Device.

HW OneKeyDownload Flashing

HW OneKeyDownload Flash Running

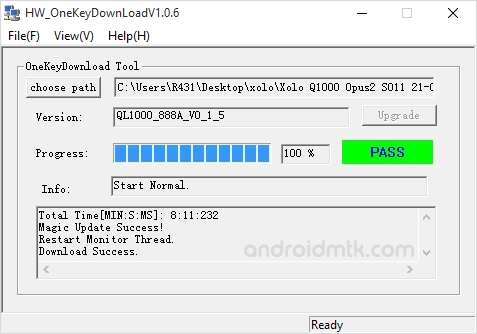

Step 10: Once Flashing is completed, you will be able to see Green Pass Status.

HW OneKeyDownload Flash Complete

Step 11: Now, close HW OneKeyDownload Tool and disconnect your Android Device from the computer.

Congratulations, Now your Android Device is successfully running the Stock Rom you have Downloaded.

Readme Once:

[*] You can follow the above tutorial to flash all types of Qualcomm Firmwares.

[*] Unable to Choose Firmware Path: If you are not able to click on Choose Path Button in Step#7 then it means you have not connect your Qualcomm Based Android Device to the computer. Try to Connect it after installing the USB Drivers and also make sure your device is Power Off.

[*] Take Backup: Take a Phone backup before using the Smart Phone Upgrade Tool as because during the flashing process your personal data will be removed.
